Lab Mini Tube Muffle Furnace 1200C PID Quartz Tube Heat Treatment

Name: Lab Mini Tube Muffle Furnace 1200C PID Quartz Tube Heat Treatment
Brand: Qianjin
Price: 1 USD

Brand Name : Qianjin

Model Number : KTF1200-MiNi

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Supply Ability : 300 PCS/Month

Delivery Time : 30 work days

Packaging Details : plywood package

MAX temperature : 1200℃

Working temperature : ≤1150℃

Heating rate : 10℃/min

Length of Heating zone : 200mm

Length of Constant temperature zone : 100mm

Diameter of Quartz tube : 25/50mm

Temperature control method : PID auto control

Temperature control accuracy : ±1℃

Furnace size : 380*320*430mm

OEM/ODM : can

Contact Now

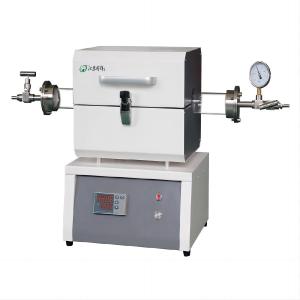

1200°C PID Quartz tube heat treatment lab Mini Tube muffle Furnace

1﹑1200°C Mini Tube Furnace

This miniature tube furnace is small and cost-effective, and can meet the experimental requirements in most atmosphere environments, and the airtightness can reach 10-4Pa.

2﹑Technical specification

Model No.	KTF1200-MiNi25	KTF1200-MiNi50
MAX temperature	1200℃	1200℃
Working temperature	≤1150℃	≤1150℃
Heating rate	10℃/min	10℃/min
Length of Heating zone	200mm	200mm
Length of Constant temperature zone	100mm	100mm
Diameter of Quartz tube	25mm	50mm
Temperature control method	30 segment program PID auto control
Temperature control accuracy	±1℃
Heating element	heating wire doped molybdenum iron chromium aluminum
Powder	220V/1.2kw
Furnace size	380320430mm

3﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.
